The 8×4 Electric Dump Truck represents a revolutionary shift in construction, mining, and logistics, offering zero emissions, lower operating costs, and superior performance compared to traditional diesel models. Designed for heavy-duty applications, it combines high efficiency, smart technology, and environmental sustainability.
| Size - Length × width × height (mm) | 11650×2550×3640 |
| Size - Front overhang / rear overhang (mm) | 1550 / 2200 |
| Size - Wheelbase (mm) | 1950+4600+1350 |
| Size - Front track / Rear track (mm) | 2060/1860 |
| Mass - GVW (kg) | 31000 |
| Mass - Curb weight (kg) | 21000 |
| Power - Maximum speed (km/h) | 85 |
| Power - Maximum climbing grade (%) | 35 (Peak) |
| Wheel - Tire specifications | 12.00R20 (With inner tube) |
| Wheel - Rim material | Steel |
| Wheel - Quantity | 10 |
| Drive motor - Brand | Top3 |
| Drive motor - Power - Rated/Peak (kW) | 315/510 |
| Drive motor - Torque - Rated/Peak (Nm) | 1650/3100 |
| Gearbox - Type | AMT four-speed |
| Power battery - Type | Lithium Iron Phosphate |
| Power battery - Total power (kWh) | 282 |
| Electronic Control - Type | Five in One (MCU+PDU+oil pump DCAC air pump DCAC+DCDC) |
| Axles - Front axle tonnage/type | 9.5T drum |
| Axles - Center and rear axle tonnage/type | 2×16T double-stage drum |
| Frame - Type | Equal height and width straight beam reinforced type |
| Frame - Main longitudinal beam section (mm) | 300×80 |
| Frame - Frame assembly width (mm) | 860 |
| Chassis - Suspension | Multi-leaf spring, integral balance shaft, rear leaf spring four-horse fixed |
| Chassis - Steering | Integral hydraulic power steering |
| Chassis - Brake | Dual circuit with ABS air brake |
| Dump Body - Inner dimensions (mm) | 7800×2350×1500 |

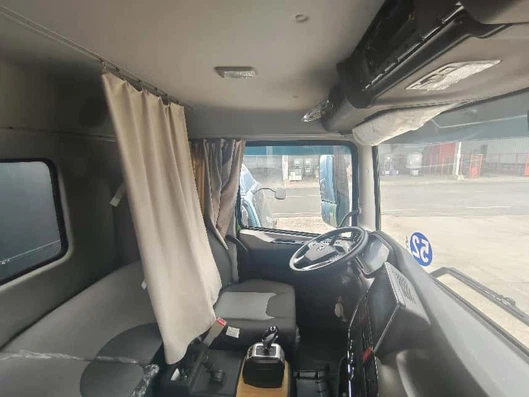

| Cab - Type | LHD, Flat roof, One bedroom |
| Cab - Number of drivers | 2 |
| 1 | Vehicle thermal management system (motor electronic control cooling + cab air conditioning and heating + power battery water cooling and heating three-in-one solution) |
| 2 | Braking energy recovery function |
| 3 | Driving recorder; multi-function steering wheel |
| 4 | Digital instrument (not full LCD) |
| 5 | Vehicle limp home function; creep function; remote vehicle lock function |
| Power take-off | Standard: Y |
| Power take-off form | Standard: Spline / Optional: Flange |
| Cab suspension | Standard: Fully floating airbag / Optional: Semi-floating coil spring |
| Driver's Seat | Standard: Airbag Seat / Optional: Mechanical Seat |
| Multimedia | Standard: Radio / Optional: Central control LCD screen |
| Reversing monitor | Standard: None / Optional: Y |
| ASR | Standard: None / Optional: Y |
| Static mop belt | Standard: Y |
| Spare tire | Standard: Y |
| Charging method | Standard: Double Gun |
Sustainable Heavy-Duty Transport Solution for
Mining & Quarries: Silent, emission-free operation for underground/surface mining.
Construction Sites: Reduced air and noise pollution in urban projects.
Municipal Waste Transport: Eco-friendly solution for smart cities.
High-Capacity Battery: 282kWh packs sufficient for full-day operations.
Electric Motor: Deliver up to 510 kW and 3,100 N·m torque, enabling 25–50% gradeability for off-road and mining use.
Fast Charging: 1–1.5 hours for 80% charge with DC fast charging, minimizing downtime.
Remote Diagnostics: Real-time battery and performance tracking via telematics.
Eco-Friendly & Cost-Efficient
Zero Tailpipe Emissions: Meets strict environmental regulations for urban construction and mining.
60% Lower Fuel Costs: Compared to diesel, with reduced maintenance (no engine/oil changes).
Government Incentives: Eligible for subsidies in regions promoting electric commercial vehicles.
Durable & Versatile Design
8×4 Chassis: Ensures stability with heavy load capacity, ideal for mining and bulk transport.
Reinforced Dump Body: High-strength steel construction for longevity in harsh conditions.
