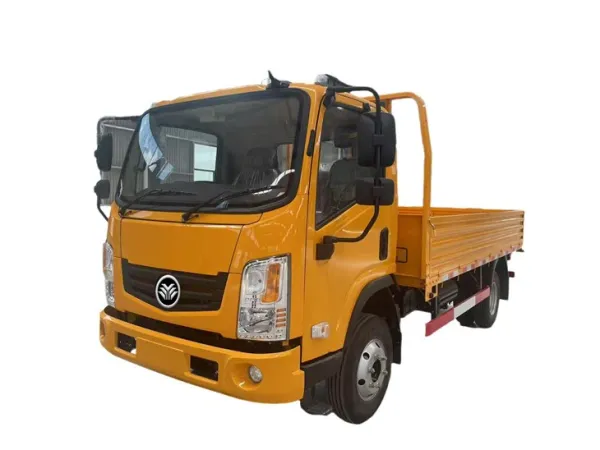

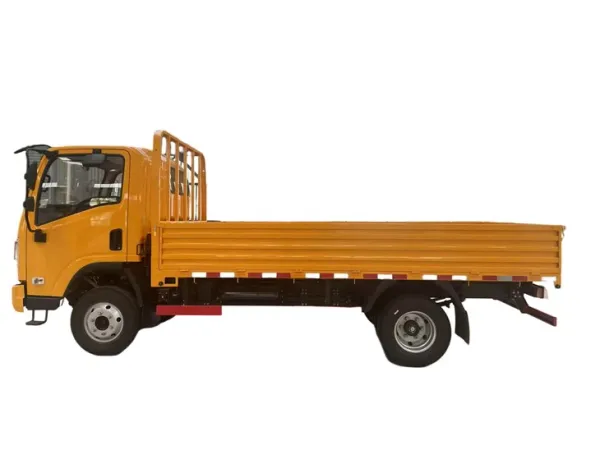

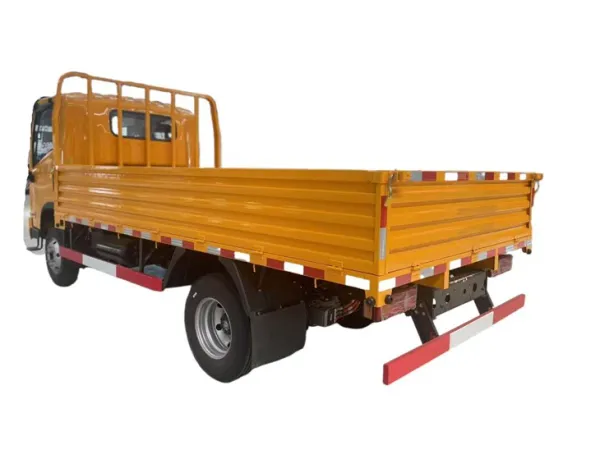

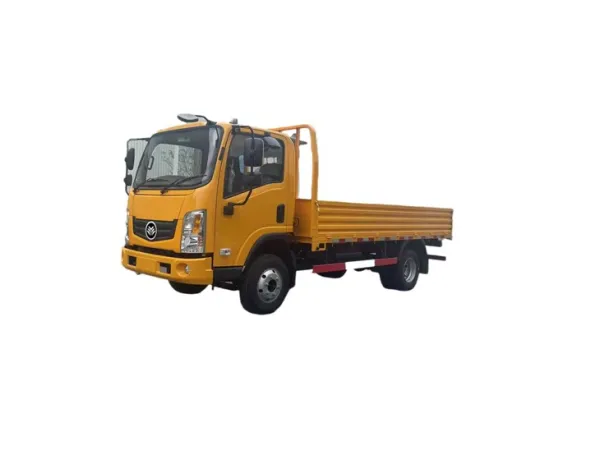

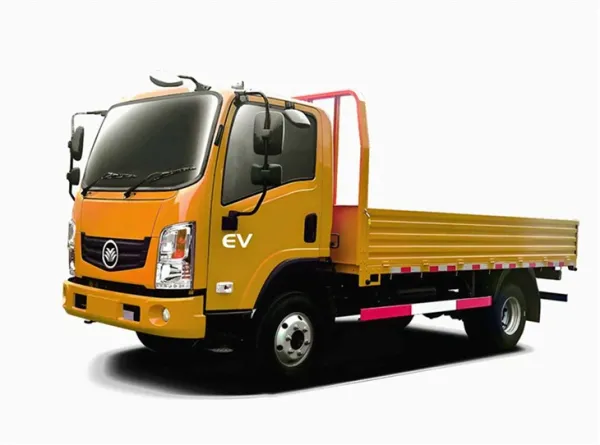

RHD 7T Electric Truck

Details

Product Name: RHD 7T Electric Dropside Truck/Chassis
Drive Mode: 4*2 Electric Drive Axle
Load Capacity (kg): 4500
Chassis Weight (kg): 2530
Chassis Dimensions (mm): 5800×2150×2400
Wheelbase (mm): 3360
Maximum Speed (km/h): 93
Maximum Gradeability (%): 20
Range Under Working Conditions (km): 210
Battery Capacity (kWh): 81
Motor Torque (N·m): 380

Category

Truck

Share to

Send Inquiry

The RHD 7T Electric Dropside Truck/Chassis is a robust and efficient medium-duty electric truck engineered for demanding urban and suburban logistics operations. It combines a powerful electric drivetrain with a high load capacity and ultra-fast charging, making it an ideal, cost-effective solution for businesses looking to electrify their fleets without compromising on performance or reliability. We offer comprehensive Knock-Down (KD) kits for overseas partners and customize the vehicle to meet your specific project requirements.

Parameter

Products Parameters

Cab - TypeFlat Roof, Single Row, Right-Hand Drive, 3 Seats
Cab - Width (mm)1835
Electric Systems - Battery TypeLithium Iron Phosphate (LFP)
Electric Systems - Battery Capacity (kWh)81
Electric Systems - Charging MethodGB/EU Standard DC Fast Charging
Electric Systems - Charging Time (h)1.5
Electric Systems - Motor TypePermanent Magnet Synchronous Motor
Electric Systems - Motor Power (kW)140
Electric Systems - Motor Torque (N·m)380
Other - Tires7.00R16-8PR
Other - Braking SystemAir Brake, Drum Type, ABS
Other - Air ConditioningRefrigerating AC

Modification Types

TypeElectric Dropside Truck
Overall Vehicle Dimensions (mm)5995×2150×2480
Loading Compartment Dimensions (mm)4200×2000×500

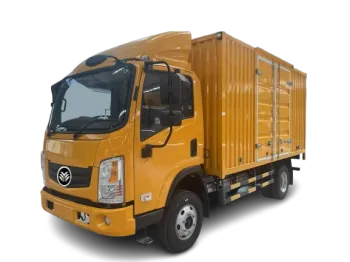

TypeElectric Cargo Truck
Overall Vehicle Dimensions (mm)5995*2100*3010
Loading Compartment Dimensions (mm)4120*2040*2100

Products Features

1. Powerful & Efficient Electric Drivetrain

High-Performance Motor: Equipped with a 140 kW Permanent Magnet Synchronous Motor, delivering a robust 380 N·m of torque. This ensures strong acceleration, excellent gradeability (20%), and a top speed of 93 km/h, fully capable of handling urban routes and motorways, even at full load.

2. Exceptional Range & Ultra-Fast Charging

The large 81 kWh Lithium Iron Phosphate (LFP) battery provides a reliable 210 km range under actual working conditions. This realistic rating allows for accurate daily route planning and effectively covers most daily urban delivery needs.

DC Fast Charging: Supports GB/EU Standard DC Fast Charging, enabling a full charge in just 1.5 hours. This minimizes downtime and maximizes vehicle uptime, supporting multi-shift operations and significantly improving overall operational efficiency.

3. Professional Chassis & Safety

Reliable Braking System: Features a professional Air Brake system with drum-type brakes and ABS (Anti-lock Braking System). This heavy-duty setup ensures strong, stable, and controlled braking performance essential for safety under full-load conditions.

Robust Tire Configuration: Fitted with 7.00R16-8PR tires. The "8PR" (8-Ply Rating) indicates high load-bearing capacity and durability, perfectly matched to the vehicle's 4.5-ton payload.

4. Ergonomic & Compliant Design

Right-Hand Drive (RHD): Specifically designed with a right-hand drive configuration, making it fully compliant with regulations in the UK, Australia, Japan, Hong Kong, and other left-hand traffic markets

5. Versatility & Modification Potential

Multiple Body Options: Available not only as a chassis but also as a ready-to-use Electric Dropside Truck or Electric Cargo Truck with an enclosed van body. This flexibility makes it a perfect platform for various applications, from construction to cold chain logistics.

Products Details

Equipped with an 81 kWh lithium iron phosphate (LFP) battery and compatible with GB/EU DC fast charging (1.5 hours), it delivers a practical range of 210 km under working conditions. The powertrain features a permanent magnet synchronous motor producing 140 kW and 380 N·m, enabling a top speed of 93 km/h and 20% gradeability.

The cab is designed for comfort and convenience, incorporating a flat roof, three-seat configuration, air suspension seats, and advanced features such as an LCD instrument panel, multimedia system, and electronic gear shift. Safety and reliability are enhanced with ABS, air brakes, and dual-tube hydraulic shock absorbers.

Ideal for urban logistics and specialized transport, this model combines zero-emission efficiency, functional adaptability, and driver-oriented comfort.

Right-hand Drive Design

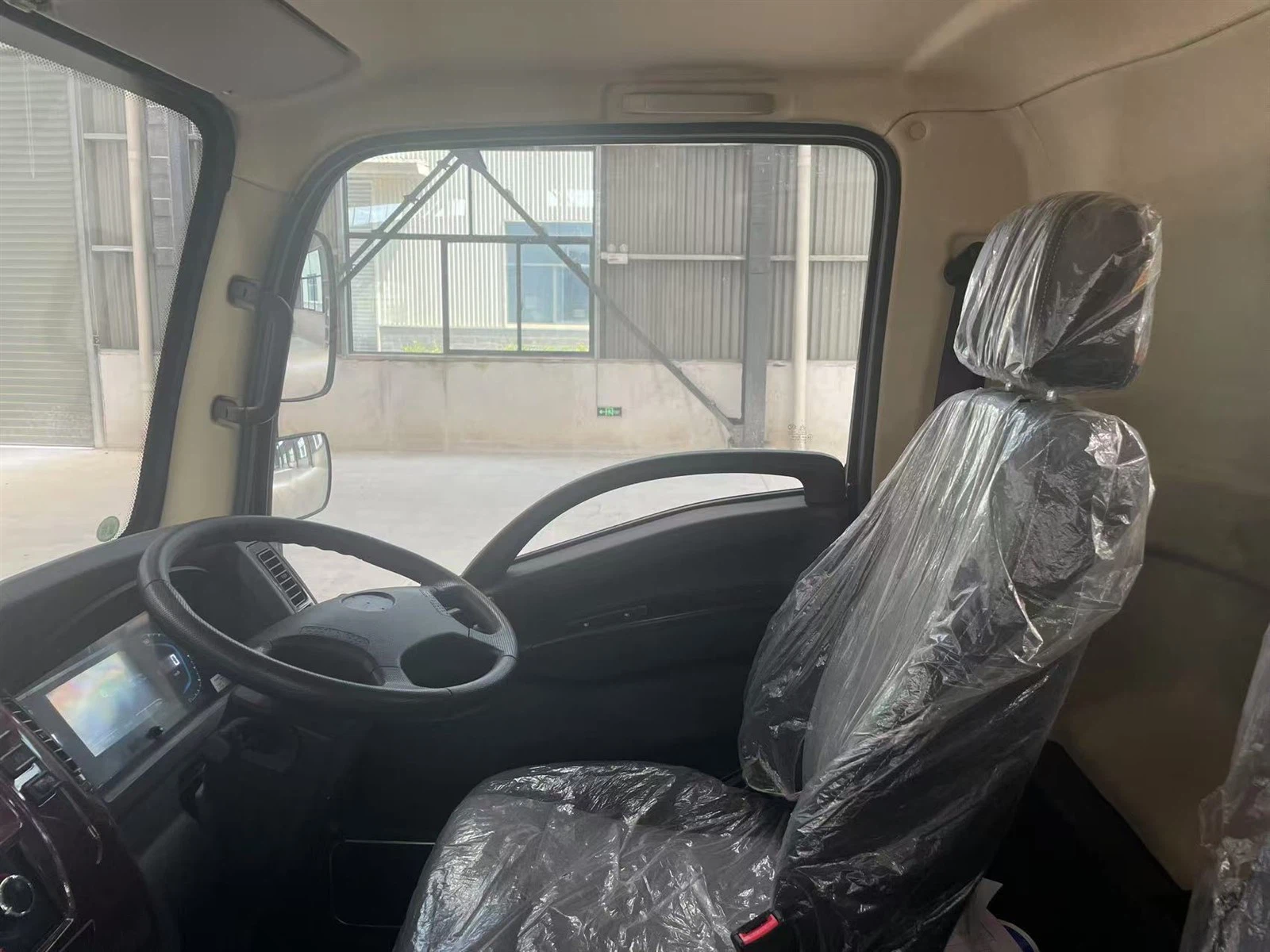

Right-hand Drive Design 1

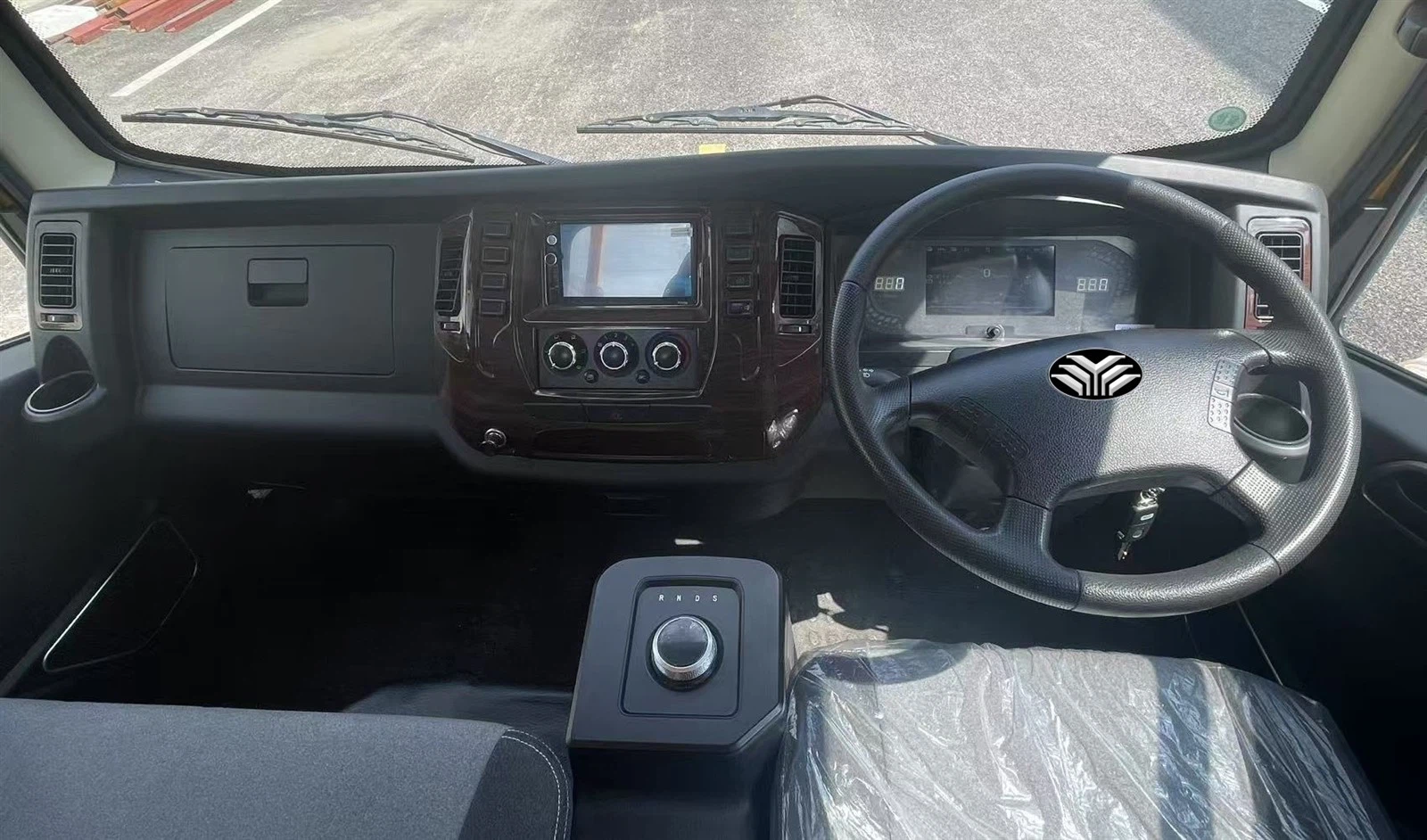

Right-hand Drive Design 2

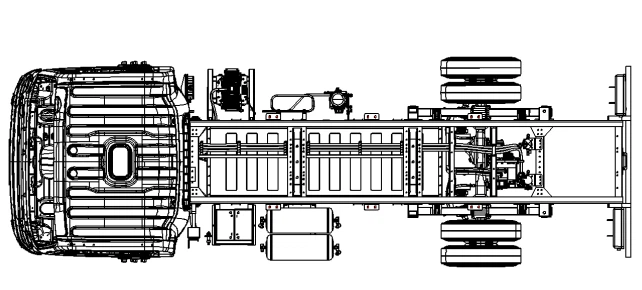

Versatile Chassis Design

Versatile Chassis Design

Electric System

Battery System Motor System Controller System

Products Parameters

Cab - TypeFlat Roof, Single Row, Right-Hand Drive, 3 Seats
Cab - Width (mm)1835
Electric Systems - Battery TypeLithium Iron Phosphate (LFP)
Electric Systems - Battery Capacity (kWh)81
Electric Systems - Charging MethodGB/EU Standard DC Fast Charging
Electric Systems - Charging Time (h)1.5
Electric Systems - Motor TypePermanent Magnet Synchronous Motor
Electric Systems - Motor Power (kW)140
Electric Systems - Motor Torque (N·m)380
Other - Tires7.00R16-8PR
Other - Braking SystemAir Brake, Drum Type, ABS
Other - Air ConditioningRefrigerating AC

Modification Types

TypeElectric Dropside Truck
Overall Vehicle Dimensions (mm)5995×2150×2480
Loading Compartment Dimensions (mm)4200×2000×500
TypeElectric Cargo Truck
Overall Vehicle Dimensions (mm)5995*2100*3010
Loading Compartment Dimensions (mm)4120*2040*2100
