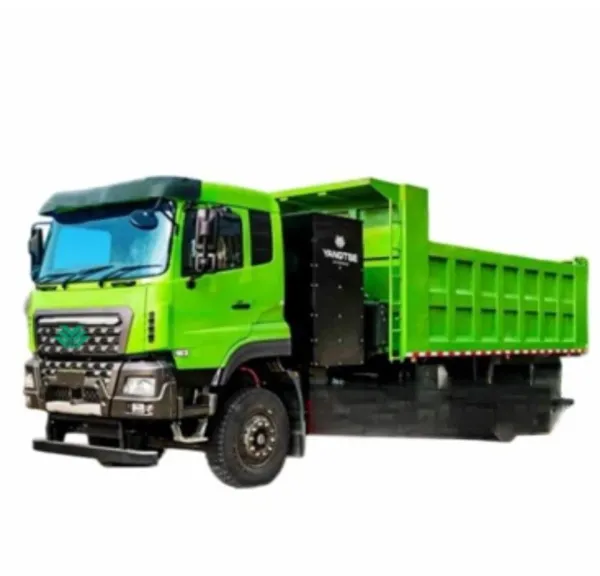

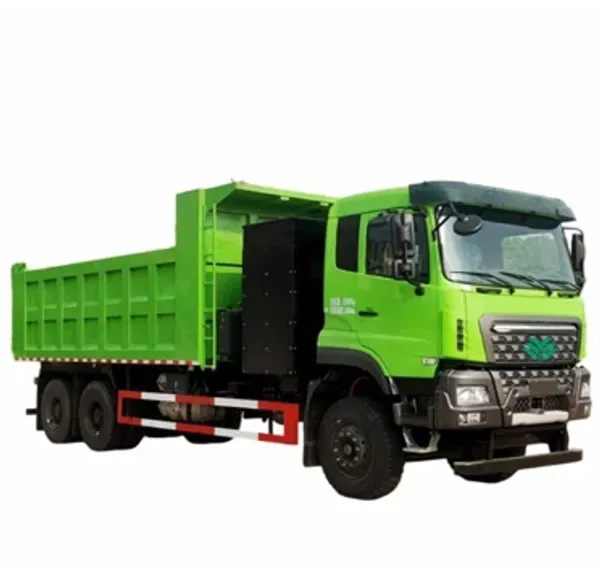

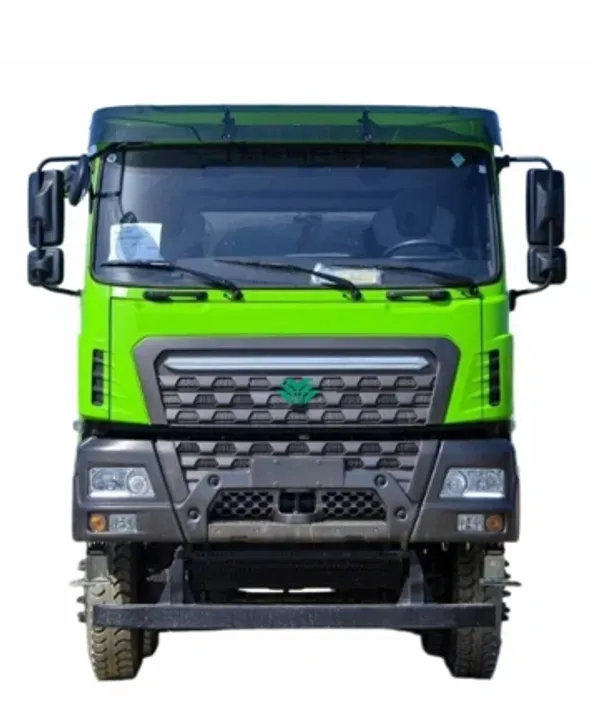

Electric Dump Truck 6X4

Details

Drive type: 6×4
Bearing level: Overload
Body Type: Widebody
Power replenishment method: Back battery replacement

Share to

Send Inquiry

The 6×4 Electric Dump Truck is a game-changing solution for modern construction, mining, and logistics operations. Combining zero-emission technology with rugged performance, this vehicle delivers power, efficiency, and sustainability for demanding work environments.

Parameter

Technical Parameters

Size - Length × width × height (mm)	9490×2550×3550
Size - Front overhang / rear overhang (mm)	1550 / 1690
Size - Wheelbase (mm)	4900+1350
Size - Front track / Rear track (mm)	2060/1860
Mass - GVW (kg)	25000 (Published)
Mass - Curb weight (kg)	19000
Dynamics - Maximum speed (km/h)	80
Dynamics - Maximum climbing grade (%)	35 (Peak)
Wheel - Tire specifications	12.00R20 (With inner tube)
Wheel - Rim material	Steel
Wheel - Quantity	10
Drive motor - Power - Rated/Peak (kW)	360/550
Drive motor - Torque - Rated/Peak (Nm)	1800/3100
Gearbox - Type	AMT four-speed
Power battery - Type/Brand	Lithium Iron Phosphate / CATL
Power battery - Total power (kWh)	400.16
Electronic Control - Type	Five in One (MCU+PDU+oil pump DCAC air pump DCAC+DCDC)
Axles - Front axle tonnage/type	9.5T drum
Axles - Center and rear axle tonnage/type	2×16T double-stage drum
Frame - Type	Equal height and width straight beam reinforced type
Frame - Main longitudinal beam section (mm)	320×80×(8+6+8)
Frame - Frame assembly width (mm)	860
Chassis - Suspension	Multi-leaf spring, integral balance shaft, rear leaf spring four-horse fixed
Chassis - Steering	Integral hydraulic power steering
Chassis - Brake	Dual circuit with ABS air brake
Dump Body - Inner dimensions (mm)	5600×2350×1500

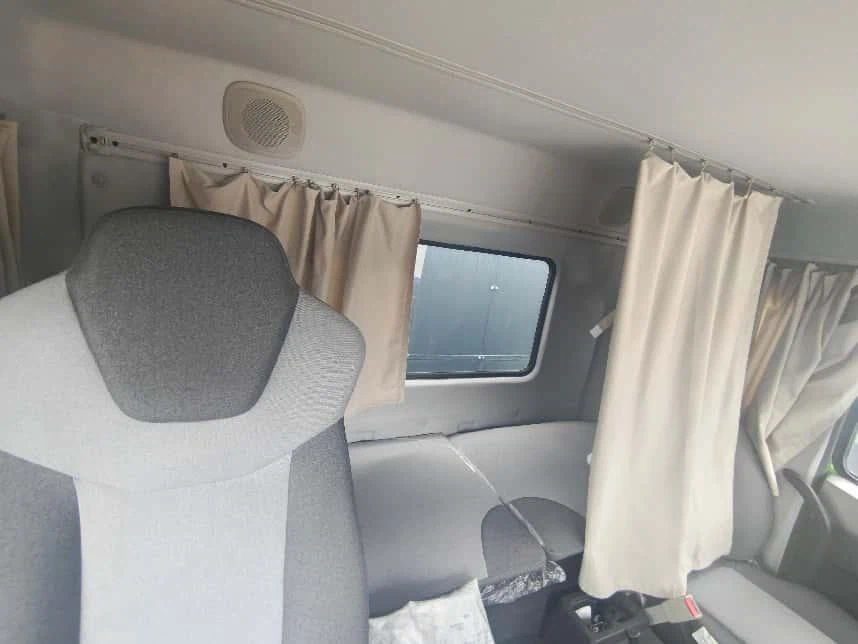

Cab - Type	LHD, Flat roof, One bedroom
Cab - Number of people	2

Basic Configuration

1	Vehicle thermal management system (motor electronic control cooling + cab air conditioning and heating + power battery water cooling and heating three-in-one solution)
2	Braking energy recovery function

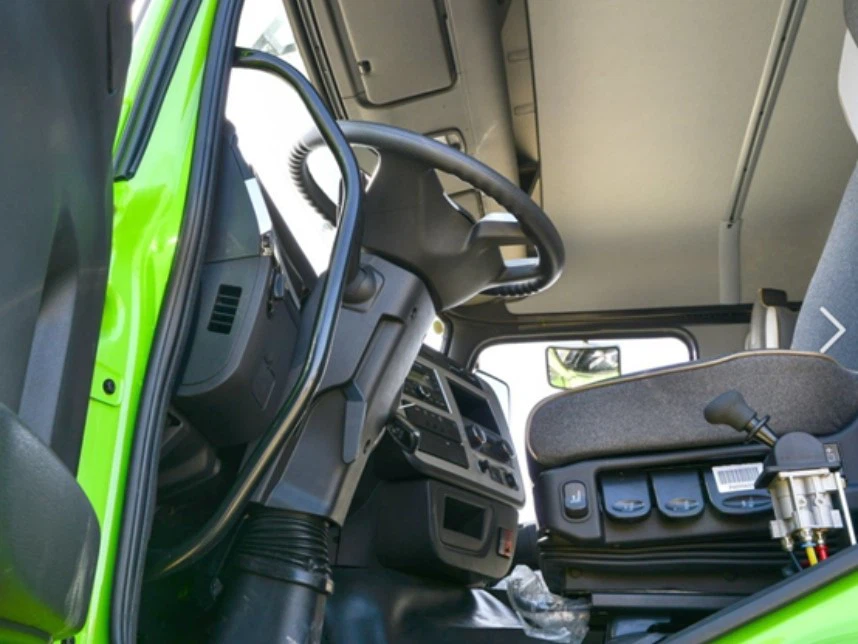

3	Driving recorder \ multi-function steering wheel
4	Digital instrument (not full LCD)
5	Vehicle limp, creep, remote lock

Optional Configuration

Power take-off	Standard: Y
Power take-off form	Standard: Spline / Optional: Flange
Cab suspension	Standard: Fully floating airbag
Driver's Seat	Standard: Airbag Seat / Optional: Mechanical Seat
Multimedia	Standard: Radio / Optional: Central control LCD screen
Reversing monitor	Standard: None / Optional: Y
Static mop belt	Standard: Y
Spare tire	Standard: Y
Charging method	Standard: Double Gun

Feature

The 6×4 Electric Dump Truck represents the next evolution in heavy equipment, delivering unmatched efficiency, lower total cost of ownership, and environmental benefits. With models available from leading manufacturers, it's the smart choice for sustainable operations.

Sustainable Heavy-Duty Transport Solution for

Quarry & Mining Operations: Silent operation ideal for noise-sensitive areas

Large-Scale Construction: Zero emissions perfect for urban projects

Port Logistics: Efficient container and bulk material handling

Detail

Economic Advantages

50–60% Lower Operating Costs compared to diesel equivalents

Reduced Maintenance: No engine oil changes or exhaust system repairs

Longer Service Life: Electric drivetrains have fewer moving parts

Rugged & Reliable Design

6×4 Drivetrain: Optimal balance of traction and maneuverability

Heavy-Duty Chassis: Supports 30 ton payloads

Durable Dump Body: High-strength steel construction withstands harsh conditions
