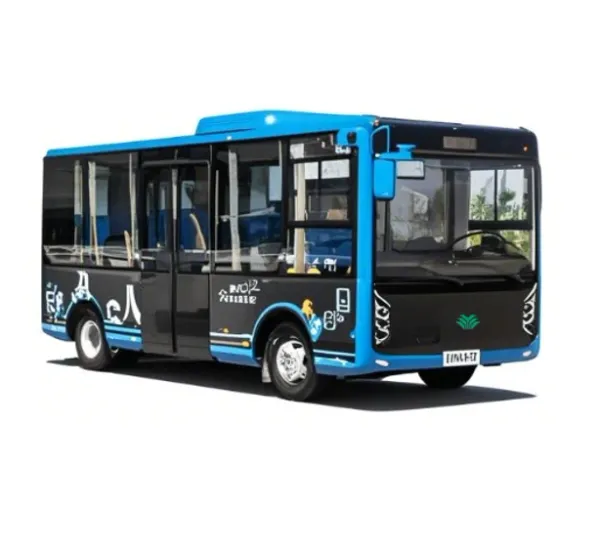

Electric Wide Body Mini Bus 6m

Details

Overall vehicle size (mm): 6150×2200×2600
Wheelbase (mm): 3750
Front/rear overhang (mm): 1200/1200
Drive motor model: 1PV5135-4WS28
First Step Height (mm): 360
Curb weight (kg): 4700
Maximum total mass (t): 6500
Passenger capacity / Seating capacity: 33/10-15; 27/10-15
Maximum speed (km/h): 60
Motor power (KW): 60/100

Share to

Send Inquiry

This kind of mini-bus (with wide-body version) is used for transporting between urban and town districts and communities, making the living environment more tranquil.

Parameter

Configurations Components

Total battery capacity (kWh)	88
Battery type	LFP
Driving range (km)	200
Minimum turning diameter (m)	<14.2

Feature

1) Dimensions: Has exterior dimensions of 6150×2200×(2600/2800) mm, with front and rear overhangs of 1200 mm each and a 3750-mm wheelbase.

2) Power System: Driven by a 1PV5135-4WS28 motor with a 60-kW rated power, and equipped with an 88-kWh LFP battery.

3) Capacity: Can carry 33 or 27 passengers, with seating capacity ranging from 10-15.

4) Accessibility: The first step height of the passenger door is 360 mm.

5) Performance: Offers a 200-km driving range and has a minimum turning diameter of ≤14.2 m.

Configurations Components

Total battery capacity (kWh)	88
Battery type	LFP
Driving range (km)	200
Minimum turning diameter (m)	<14.2

Product characteristic

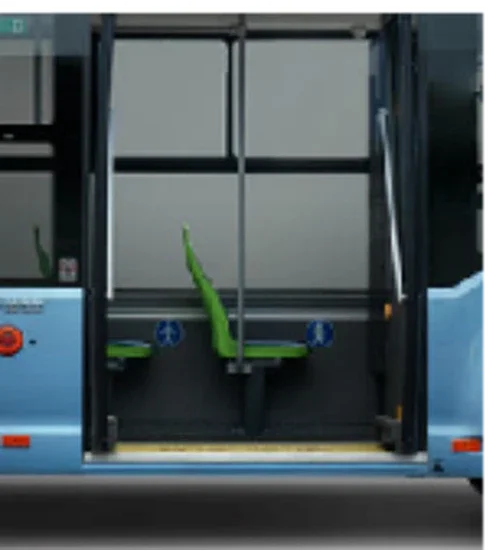

1) The vehicle is equipped with large swing doors on the right side, providing easy access for passengers. The first step is 320mm high, making boarding and alighting easier.

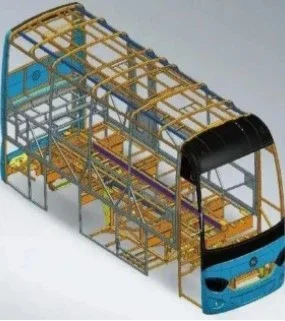

2) Fully Load-Bearing Structural Design, Using High-Quality Steel for Safety and Reliability
