A rear-end data monitoring terminal is installed. The bus adopts rear-wheel drive with an integrated axle. It comes with 2 TV screens for video advertising, front and rear electronic display boards, whole-vehicle WiFi, and USB charging ports. Additionally, it uses a European-standard charging interface.

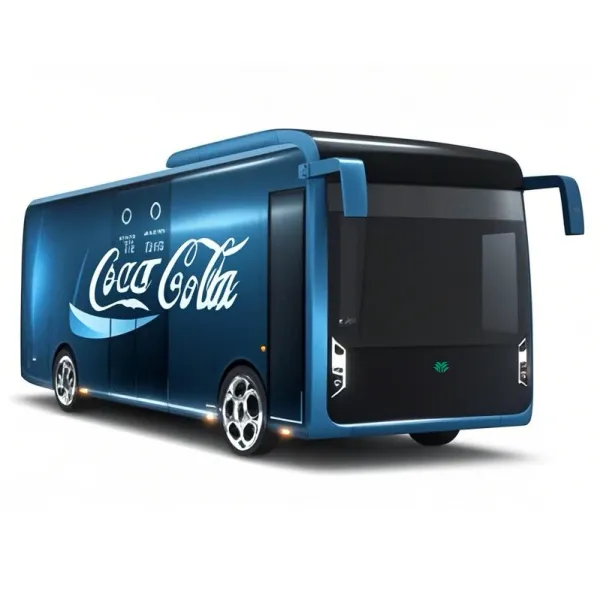

Electric Low Floor Mini Bus 6m
Details
Overall vehicle size (mm): 6200×2116×2860
Wheelbase (mm): 4350
Tread (Front/Rear) (mm): 1695/1650
Front and rear axle load (tons): 2800/3500
First Step Height (mm): 390
Curb weight (kg): 3800
Maximum total mass (t): 6300
Rated Passengers (Person/Seat): 19/30
Maximum speed (km/h): 69
Maximum gradability (%): 20%
Motor power (KW): 60/100
Wheelbase (mm): 4350
Tread (Front/Rear) (mm): 1695/1650
Front and rear axle load (tons): 2800/3500
First Step Height (mm): 390
Curb weight (kg): 3800
Maximum total mass (t): 6300
Rated Passengers (Person/Seat): 19/30
Maximum speed (km/h): 69
Maximum gradability (%): 20%
Motor power (KW): 60/100
Category
BusShare to
This kind of bus complies with the standards in design documents "MC - 2022 - 027" and "LTFRB - MC - 2021 - 002". It features a shared roof-mounted air-conditioning system. With a short front and rear overhang design, it maximizes passenger space, accommodating up to 37 people. It is equipped with facilities for the disabled, including steps and a designated wheelchair area.
Parameter
Configurations Components
| Front overhang/Rear overhang (mm) | 1000 /850 |
| Approach angle/Departure angle (°) | 20.5/27.2° |
| Battery capacity (kW.h) | 88 |
| Range with air conditioning on (km) | 200 |
| Width of side door (mm) | 1100 |
| Minimum interior height dimension | 1750 |
Feature
Configurations Components
| Front overhang/Rear overhang (mm) | 1000 /850 |
| Approach angle/Departure angle (°) | 20.5/27.2° |
| Battery capacity (kW.h) | 88 |
| Range with air conditioning on (km) | 200 |
| Width of side door (mm) | 1100 |
| Minimum interior height dimension | 1750 |

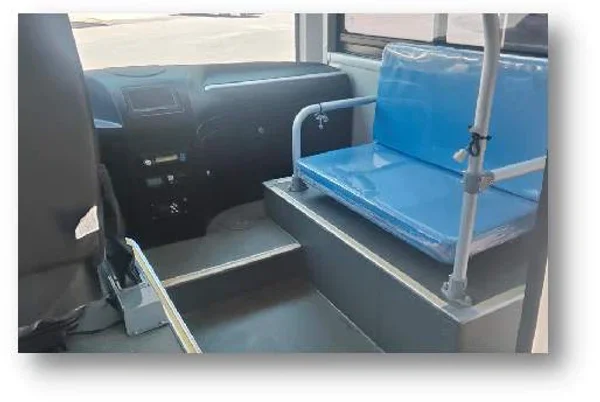

Product Characteristic

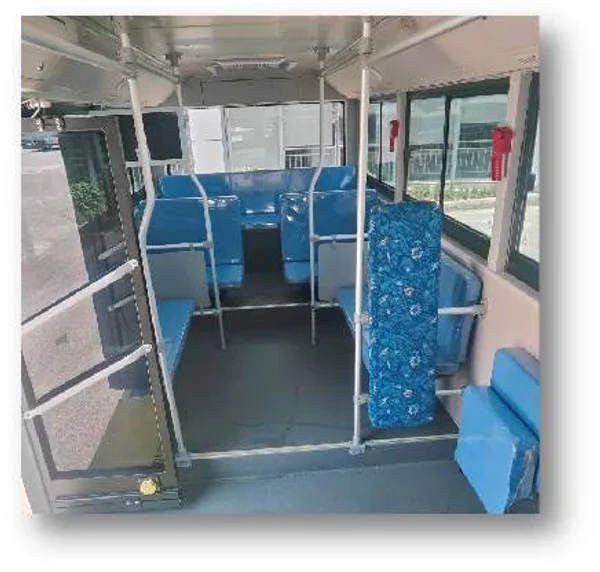

1. The passenger seat can accommodate 19 people, 11 people standing in the carriage

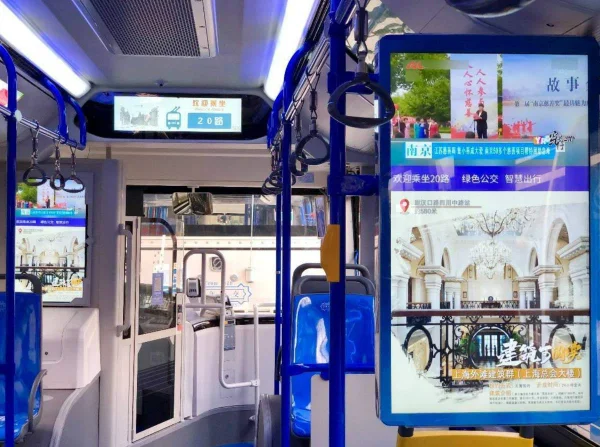

2. The interior is equipped with two liquid crystal TVs, an electronic billboard on the front side of the vehicle, and a 7-inch LCD with WiFi. It also includes an onboard information system, surveillance system (with four cameras: two for the interior, one for reversing, and one for recording while driving), and an audio-visual system. All modern facilities are available.
