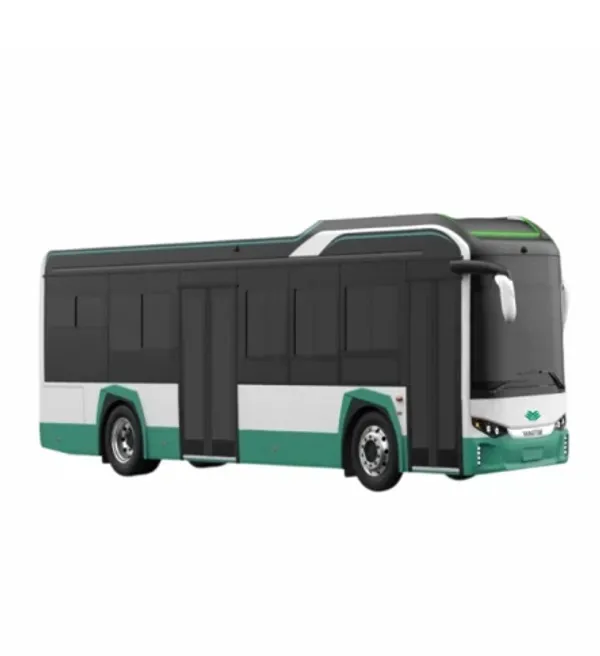

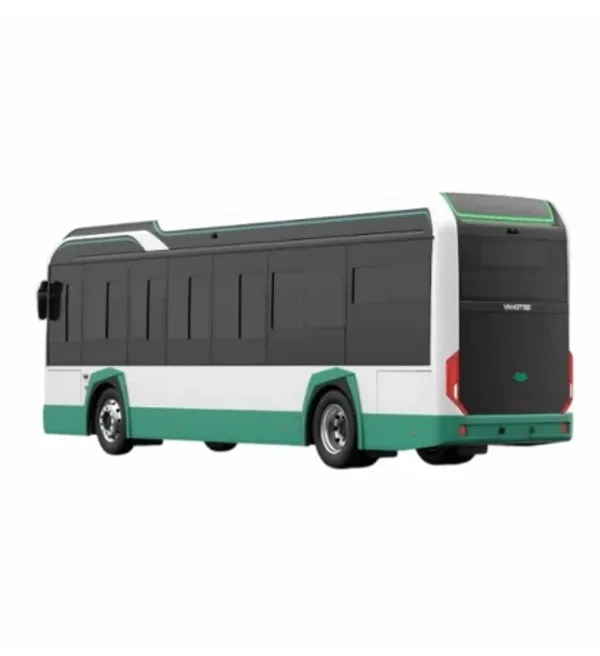

It is an 8.5-meter electric city bus designed for urban public transport, combining low-floor accessibility, energy efficiency, and advanced safety features. Built with a durable load-bearing body structure, this bus prioritizes passenger comfort and operational reliability, making it ideal for high-frequency city routes.
| Front Axle | 5T disk type |
| Rear Axle | 9.5T disk type, new energy-specific main reduction gear (Dena, Fangsheng) |
| Suspension | Front 2 + Rear 4 airbags (Bosch, China Highway) |
| Steering System | Integrated electro-hydraulic booster pump |
| Braking System | Oil piston type air pump, dual-circuit air brake, front/rear disk brakes |
| Tyre | 255/70R22.5 |
| Storage Battery | 120Ah×12V×2 |
| Lubricating Device | AR60H Aote |
| Motor Cooling Mode | Intelligent cooling system |
| Cell Capacity | 3.22V/400AH |
| Overall Capacity (kWh) | 229 / 186 |
| Charge Rate | 1C |
| Cooling Mode | Liquid Cooling |
| Driving System | PM synchronous motor |
| Manufacturing Enterprise | CRRC Electric Vehicle |
| Energy Storage Device Nominal Voltage (V) | 579.6 |
| Rated/Peak Power (kW) | 95/175 |
| Rated/Peak Torque (N·m) | 8500/2000 |
| Energy Density (Wh/kg) | ≥160 |
| Cooling Mode (Motor) | Liquid Cooling |
| Body Structure | Low entrance, load-bearing body |
| Interior | Molded interior, 12mm + 15mm bamboo plywood floor, quartz stone floor leather, aluminum alloy air duct |
| Car Doors | Pneumatically operated single sliding doors (front and rear), aluminum alloy door body |
| Windshield & Windows | - Front: 7.76mm laminated glass - Rear/Side: 5.0mm glass (laminated for light transmittance 50%-60%, tempered glass otherwise) |
| Rearview System | Electric rearview mirror |
| Air-Conditioning System | Dual air conditioning (with PTC), fuel oil heater included |
| Defrost System | 3kW high-voltage defrosting |
| Audio-Visual System | MP3 player |
| Lighting | Small round lights, rear tail lights, signal lights |
| Wiper System | High-grade wiper with washer |
| Low-Voltage Electrical | Three-level CAN bus instrument, light box-type street sign / LED dynamic electronic sign |
| Remote Monitoring | Background data remote monitoring system (service valid until vehicle scrap) |
| High-Voltage Electrical | Integrated power supply, high-voltage distribution cabinet, insulation monitor |
| Paint | Metallic paint |
| Other Equipment | - 2×4 kg fire extinguishers - 1 sunroof (non-ventilated) - Warning triangle, electric horn, traffic recorder |

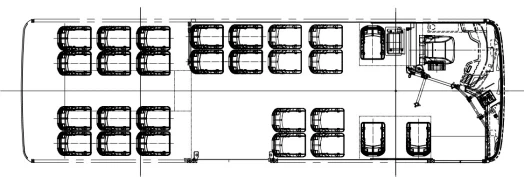

Seating Layout of Customer-Oriented Design
The seating arrangement is as follows:
1) Front Wheel Arch Area: 3 seats.
2) Front to Middle Door Area: 2+2 (or 1+1) seat configuration.
3) Middle to Rear Door Area: 2+2 seat configuration.
4) Rear Door Area: Opposite-facing seats.
5) Total Seats (excluding additional facilities): 27+1.
| Front Axle | 5T disk type |
| Rear Axle | 9.5T disk type, new energy-specific main reduction gear (Dena, Fangsheng) |
| Suspension | Front 2 + Rear 4 airbags (Bosch, China Highway) |
| Steering System | Integrated electro-hydraulic booster pump |
| Braking System | Oil piston type air pump, dual-circuit air brake, front/rear disk brakes |
| Tyre | 255/70R22.5 |
| Storage Battery | 120Ah×12V×2 |
| Lubricating Device | AR60H Aote |
| Motor Cooling Mode | Intelligent cooling system |
| Cell Capacity | 3.22V/400AH |
| Overall Capacity (kWh) | 229 / 186 |
| Charge Rate | 1C |
| Cooling Mode | Liquid Cooling |
| Driving System | PM synchronous motor |
| Manufacturing Enterprise | CRRC Electric Vehicle |
| Energy Storage Device Nominal Voltage (V) | 579.6 |
| Rated/Peak Power (kW) | 95/175 |
| Rated/Peak Torque (N·m) | 8500/2000 |
| Energy Density (Wh/kg) | ≥160 |
| Cooling Mode (Motor) | Liquid Cooling |
| Body Structure | Low entrance, load-bearing body |
| Interior | Molded interior, 12mm + 15mm bamboo plywood floor, quartz stone floor leather, aluminum alloy air duct |
| Car Doors | Pneumatically operated single sliding doors (front and rear), aluminum alloy door body |
| Windshield & Windows | - Front: 7.76mm laminated glass - Rear/Side: 5.0mm glass (laminated for light transmittance 50%-60%, tempered glass otherwise) |
| Rearview System | Electric rearview mirror |
| Air-Conditioning System | Dual air conditioning (with PTC), fuel oil heater included |
| Defrost System | 3kW high-voltage defrosting |
| Audio-Visual System | MP3 player |
| Lighting | Small round lights, rear tail lights, signal lights |
| Wiper System | High-grade wiper with washer |
| Low-Voltage Electrical | Three-level CAN bus instrument, light box-type street sign / LED dynamic electronic sign |
| Remote Monitoring | Background data remote monitoring system (service valid until vehicle scrap) |
| High-Voltage Electrical | Integrated power supply, high-voltage distribution cabinet, insulation monitor |
| Paint | Metallic paint |
| Other Equipment | - 2×4 kg fire extinguishers - 1 sunroof (non-ventilated) - Warning triangle, electric horn, traffic recorder |

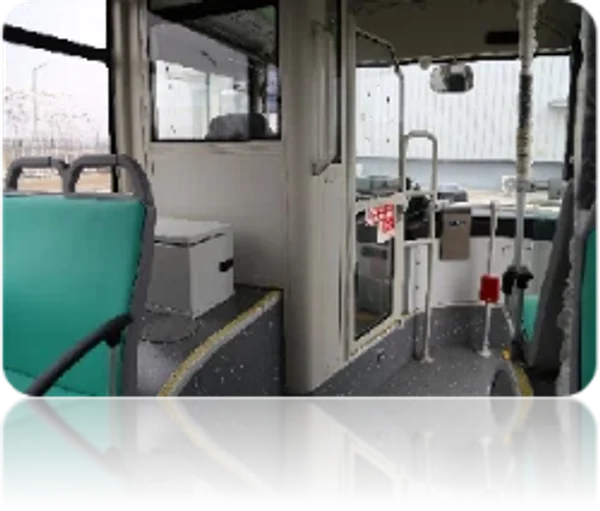

1) Driving area only with aluminum alloy

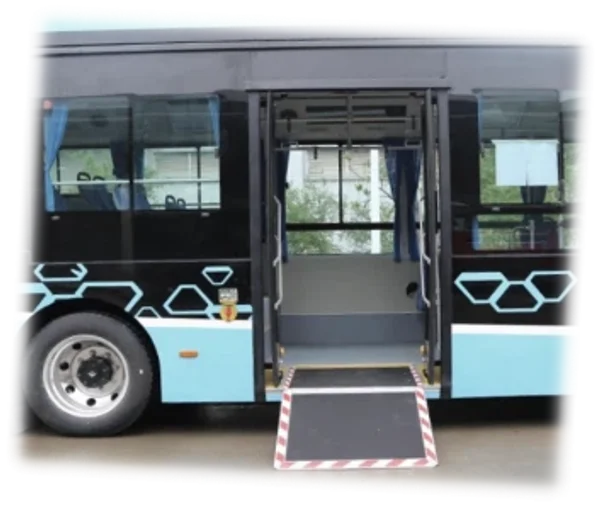

2) Low floor, wheelchair area

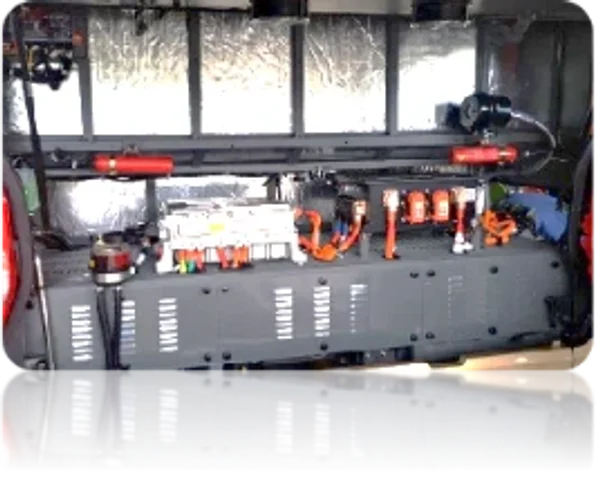

3) Multi-in-one Controller, BMS and other electrical parts, rear bin door can be opened to maintain and repair.
4) Insulation patent, higher safety performance
5) Short rear overhang, short front overhang, passenger capacity increased by 30%, reaching a length of 8 meters for the vehicle.
