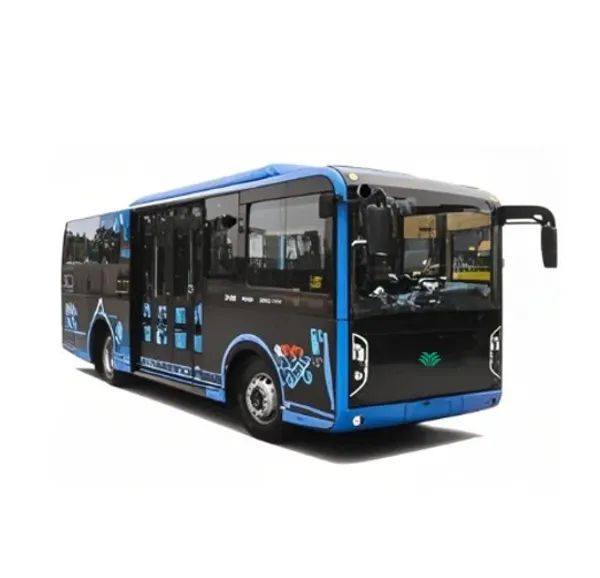

Electric Narrow Body Mini Bus 6m

Details

Overall vehicle size (mm): 6100×1795×2200
Wheelbase (mm): 3750
Front/rear overhang (mm): 1200/1600
Drive motor model: YKHTTM005
First Step Height (mm): 360
Curb weight (kg): 3800
Maximum total mass (t): 5000
Passenger capacity / Seating capacity: 18/10-13
Motor power (KW): 45

Share to

Send Inquiry

This kind of mini-bus (with narrow-body version) is suitable for urban public transit tourism routes, accommodating shuttle services between attractions, as well as providing ferrying and sightseeing functions within tourist areas.

Parameter

Configurations Components

Total battery capacity (kWh)	88
Battery type	LFP
Driving range (km)	200
Minimum turning diameter (m)	<15.2

Feature

1) Dimensions: Exterior dimensions are 6100×1795×2200 mm, with a front overhang of 1200 mm, a rear overhang of 1600 mm, and a wheelbase of 3750 mm.

2) Power: Utilizes a YKHTTM005 drive motor with a rated power of 45 kW. It has an 88-kWh LFP battery, providing a driving range of 200 km.

3) Capacity: Can accommodate 18 passengers, with seating capacity ranging from 10-13.

4) Accessibility: The first step height of the passenger door is 360 mm.

5) Performance: Has a manufacturer's maximum total mass of 5000 kg, a curb weight of 3800 kg, and a minimum turning diameter of ≤15.2 m.

Configurations Components

Total battery capacity (kWh)	88
Battery type	LFP
Driving range (km)	200
Minimum turning diameter (m)	<15.2

Product characteristic

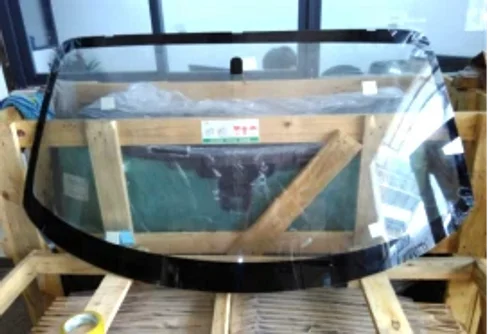

1) The front windshield features panoramic laminated glass, providing the driver with excellent visibility and ensuring driver safety. The rear windshield is made of tempered glass and is optimized to serve as a safety exit. Sliding windows are embedded in the side windows to allow natural ventilation. Additionally, safety exits are provided on both sides, equipped with safety hammers. A safety roof window can be optionally installed on the large roof for emergency use.

2) Selecting swing-type passenger doors, which do not occupy interior space when opened, elevating the vehicle's grade and facilitating passenger boarding and alighting, making it easier for passengers to escape in emergency situations.
