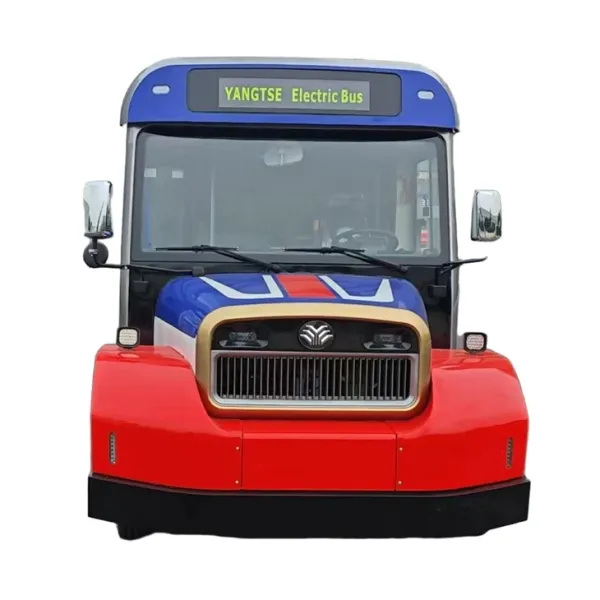

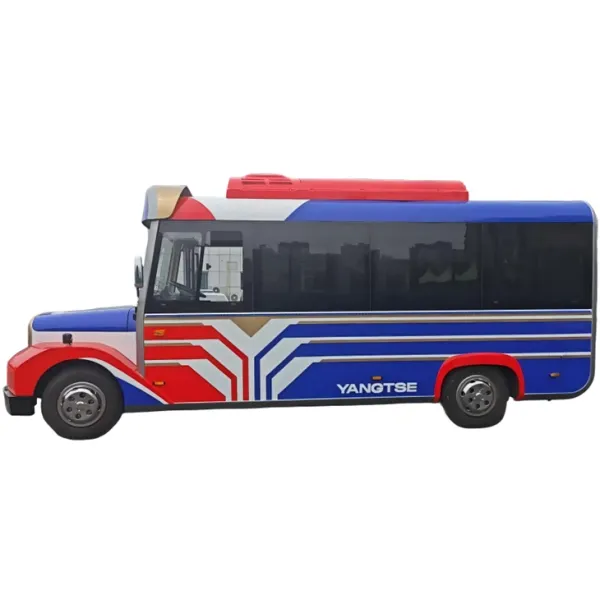

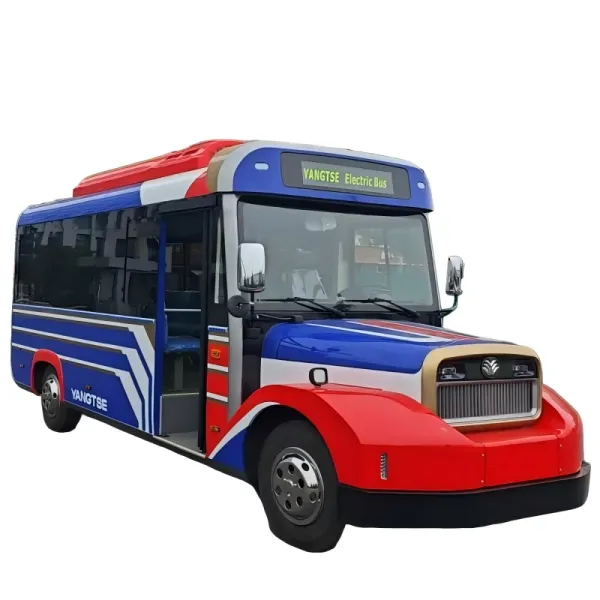

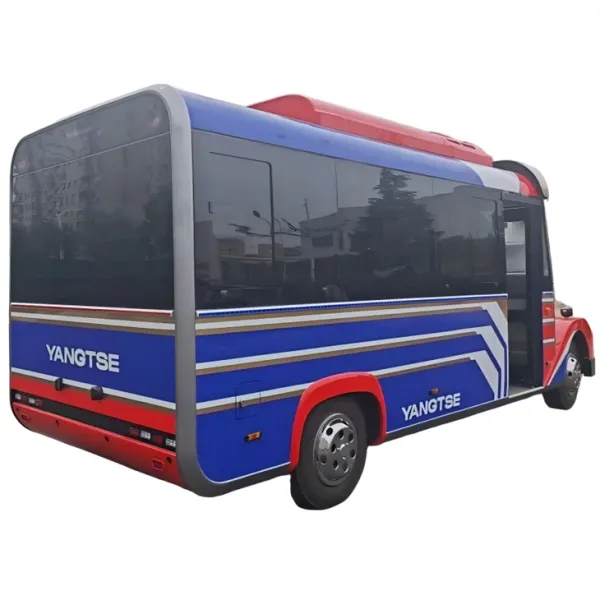

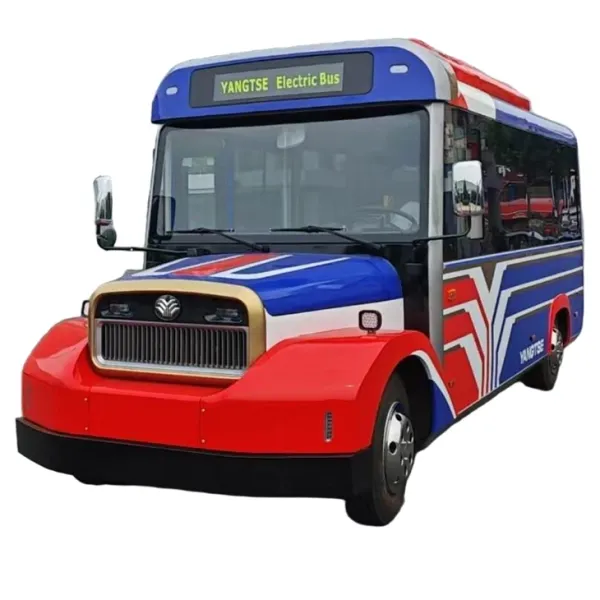

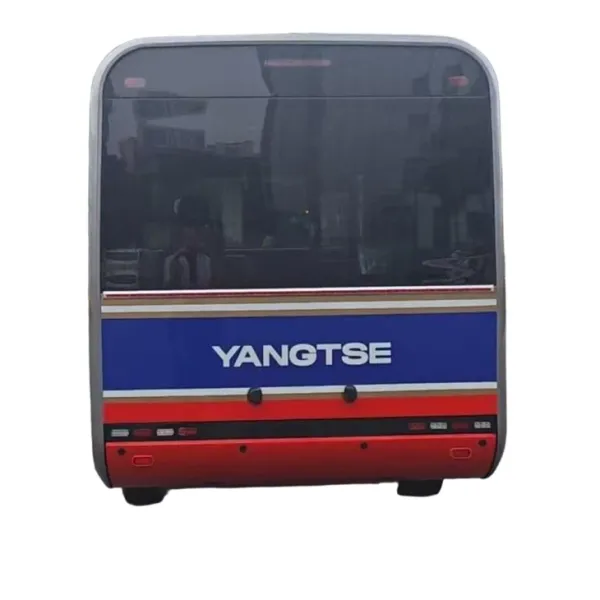

Electric Jeepney 6m

Details

Length*Width*Height (mm): 6600*2120*2910
Wheelbase (mm): 4300
GVW (kg): 5700
Number of seats: 16/18/21+1
Cruise mileage (km): 249

Category

Bus

Share to

Send Inquiry

The Electric Jeepney (e-Jeepney) is a modern, zero-emission version of the iconic Philippine public transport vehicle, designed to replace traditional diesel-powered jeepneys. Running on rechargeable batteries, it offers eco-friendly, quiet, and cost-efficient urban mobility.

Adopted in cities, e-Jeepneys support the modernization program, promoting sustainable public transport for you.

Parameter

Parameters

ModelWG6660BEVHJ
Body structureFull load-bearing and second step
FuelPure electric
Length (mm)6600
Width (mm)2120
Height (mm)2910
Wheelbase (mm)4300
GVW (kg)5700
BatteryCORNEX 92.7kWh
Cruise mileage249km (40km/h Constant speed, AC off)

Seat Layout Options

18+1Double-sided long strip seats
16+1Forward-facing seats
21+1Forward-facing seats

Technical Specifications

Driving motorPMSM, 67/140kW, 160/360Nm, 12000rpm
Drive controllerFour in one (MCU, PDU, DCDC, DC/AC)
Cooling systemSingle-cooling electric air conditioner, 25KW cooling capacity with integrated battery water cooling
CCTVFive-channel video surveillance
Decorative light stripsRed and blue decorative light strips
AxleFront disc & rear drum
SuspensionSpring suspension
Tire235/75R17.5
RimSteel rim with stainless steel wheel rim decorative cover (optional)
Braking systemHydraulic booster with 25% higher efficiency than GB standard

Detail

The appearance inherits the traditional Philippine jeepney charm and boldly incorporates innovative design, outlining the atmospheric body with sleek and smooth lines, which makes the vehicle recognizable. The flowing road sign cover is like a finishing touch, giving the vehicle a unique flavor. The decorative light strip around the body is beautiful both day and night. It is a delicate decoration during the daytime and a flowing light shadow at night, showing the extraordinary style.

High-strength diamond closure ring constructs a safety line of defense to protect the occupants. The skeleton of the whole vehicle is made of 700Mpa high-strength steel, which greatly improves the strength of the skeleton and enhances the safety performance. The frame is made of rectangular tube honed beam structure of high strength steel, with uniform force, high reliability, good durability and high degree of lightweight. Overall electrophoresis of the frame, good anti-corrosion and corrosion resistance.

Suspension system adopts gradual cross-section less leaf spring, supplemented by transverse stabilizer bar structure, comfortable, good durability and low maintenance cost. The vehicle has four wheels, which reduces the unsprung mass to a greater extent compared with the six-wheeled vehicle, resulting in good traveling convenience and lower maintenance cost.

The brake system adopts hydraulic booster, which can provide higher braking oil pressure compared with the traditional vacuum booster, and its braking efficiency has been increased by 25% compared with the requirements of the GB standard.

Software layered design, single module failure does not affect the whole vehicle operation.

Support third-party application access (e.g. payment system, advertising platform).

Through brake energy recovery algorithm, kinetic energy is converted into electric energy to improve range by 10%-20%.

Extra-large whole car glass, open vision inside the car, no dead angle of the driver's field of vision, driving more at ease. Passenger area dark gray glass, efficient sun protection and heat insulation.

Flexible Seating Options (16, 18, or 21 seats)

Customizable layouts to suit different passenger demands. Spacious and ergonomic design for comfort and safety.

Parameters

ModelWG6660BEVHJ
Body structureFull load-bearing and second step
FuelPure electric
Length (mm)6600
Width (mm)2120
Height (mm)2910
Wheelbase (mm)4300
GVW (kg)5700
BatteryCORNEX 92.7kWh
Cruise mileage249km (40km/h Constant speed, AC off)

Seat Layout Options

18+1Double-sided long strip seats
16+1Forward-facing seats
21+1Forward-facing seats

Technical Specifications

Driving motorPMSM, 67/140kW, 160/360Nm, 12000rpm
Drive controllerFour in one (MCU, PDU, DCDC, DC/AC)
Cooling systemSingle-cooling electric air conditioner, 25KW cooling capacity with integrated battery water cooling
CCTVFive-channel video surveillance
Decorative light stripsRed and blue decorative light strips
AxleFront disc & rear drum
SuspensionSpring suspension
Tire235/75R17.5
RimSteel rim with stainless steel wheel rim decorative cover (optional)
Braking systemHydraulic booster with 25% higher efficiency than GB standard
