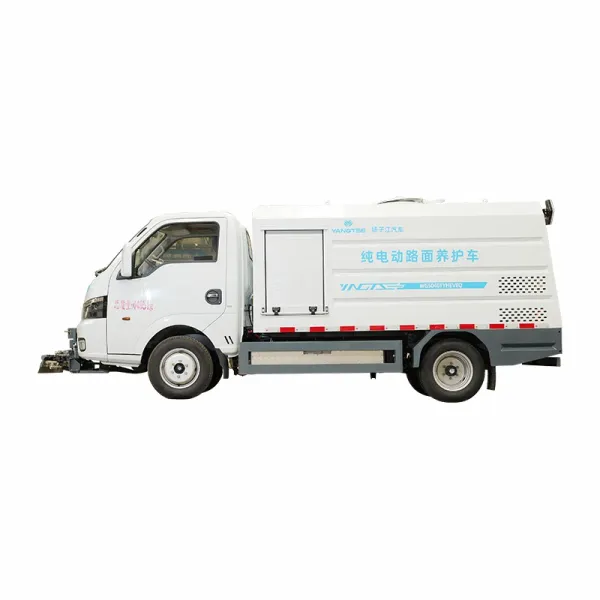

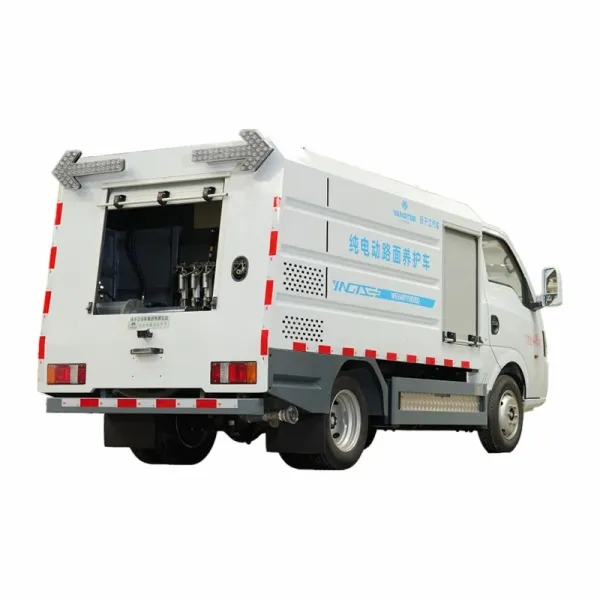

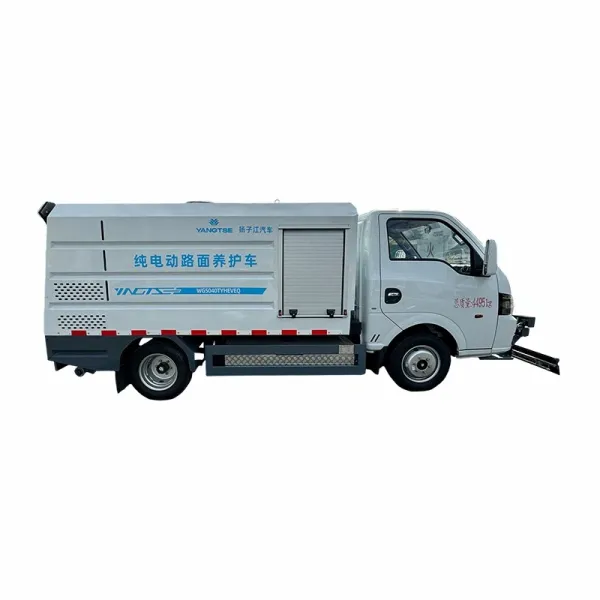

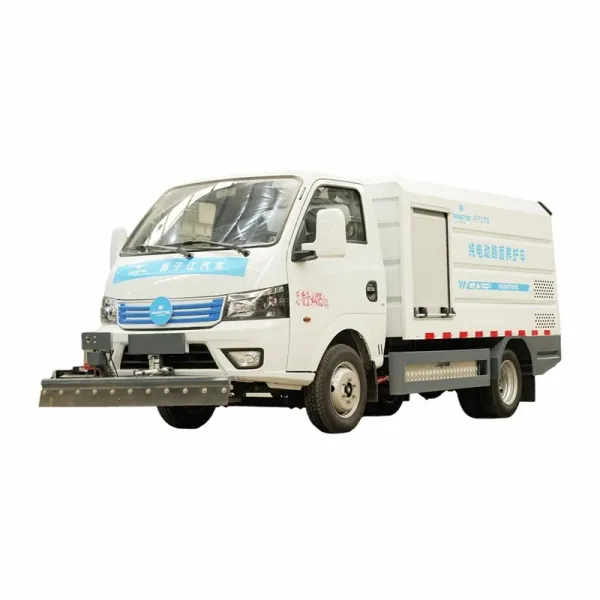

Electric Road Maintenance Vehicle
Details
Electric road maintenance vehicle: 4.5T
Tank volume (m³): 2.3
Rated load capacity (kg): 1650
Battery capacity (kWh): CATL 55.7
Operation capacity (h): 6-7
Cleaning width (mm): 1700
Tank volume (m³): 2.3
Rated load capacity (kg): 1650
Battery capacity (kWh): CATL 55.7
Operation capacity (h): 6-7
Cleaning width (mm): 1700
Category
Special VehicleShare to
Pure electric road maintenance vehicle, is used for the cleaning operation of the pavement in the neighborhood, street, square, park, sidewalk, etc. It is equipped with different specifications of cleaning devices, which can meet the cleaning demand for different roads.
Parameter
Dimensions (mm) | Length × Width × Height | 5480×1800×2150 |
|
| |
Front overhang/rear overhang | 1180/1185 |
|
| ||
Wheelbase | 2800 |
|
| ||
Front track/Rear track | 1390/1240 |
|
| ||
Minimum ground clearance | 200 |
|
| ||
Mass (kg) | Total mass/curb mass/load | 4495/2760/1605 |
|
| |
Passability | Approach angle/departure angle (°) | 12/18 |
|
| |
Minimum turning diameter (m) | 14 |
|
| ||
Dynamics | Maximum speed (km/h) | 90 |
|
| |
Maximum climbing grade (%) | 20 |
|
| ||
Economical | Energy consumption (wh/km) | 253 |
|
| |
Driving range (km) (constant speed) | 220 |
|
| ||
Chassis | Manufacturer | Dongfeng Motor Corporation |
|
| |
Cab | Number of passengers allowed (persons) | 2 |
|
| |
Tire | Tire specifications | 185R15LT 8PR |
|
| |
Quantity | 6 |
|
| ||
Suspension | Front suspension | Leaf spring non-independent suspension |
|
| |
Rear Suspension | Leaf spring non-independent suspension |
|
| ||
Power motor | Manufacturer | JINGJIN MOTOR TECHNOLOGY CO., LTD. |
|
| |
Type/Cooling method | Permanent magnet synchronous/liquid cooling |
|
| ||
Rated power/peak power (kW) | 42/100 |
|
| ||
Torque Rated/peak (Nm) | 90/230 |
|
| ||
Protection level | IP67 |
|
| ||
Type | AMT |
|
| ||
Power battery | Total power (kWh)/type | 55.7/Lithium Iron Phosphate | CATL |
| |
Charging method/protection level | DC fast charging/IP67 |
|
| ||
Steering system | Steering gear type | Recirculating ball |
|
| |
Power type | Hydraulic |
|
| ||
Braking system | Type | Vacuum assisted hydraulic dual circuit brake |
|
| |
Power mode | Vacuum Assist |
|
| ||
Air conditioner | Type | Electric cooling and heating |
|
| |
Special device | Cabinet | Material | 304 Stainless Steel |
|
|
Water tank capacity (m³) | 2.5 |
|
| ||

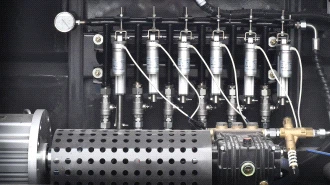

High pressure plunger pump | Rated flow rate (l/min) | 42 | UDOR |
| |
Rated pressure (MPa) | 17 |
|
| ||
Rated speed (r/min) | 1450 |
|
| ||
Driving motor power (kW) | 15 |
|
| ||
Dedicated Features | Cleaning width (mm) | 1700 |
|
| |
Cleaning speed (km/h) | 5-10 |
|
| ||
Operation efficiency | 90% |
|
| ||
Feature
It has good maneuvering stability, strong carrying capacity, and excellent dynamics and economy, which is the first choice for energy saving and environmental protection.
Product Characteristic

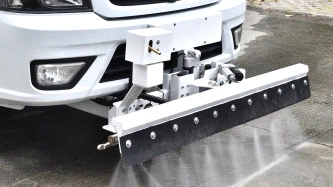

1. Cleaning device can be equipped with high-pressure water gun, hand-pushed mobile cleaner, point flushing device, front spraying device, front cleaning device, can be applied on different road surfaces.
2. Water volume of 2.5m³, long operating time, green motor direct drive, small flow inlet, high-pressure water pump, three-speed gear speed, high efficiency, stable and reliable performance.

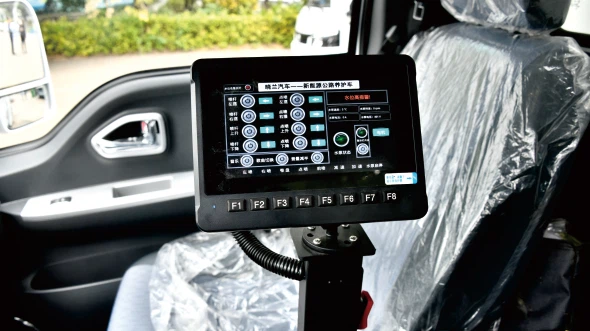

3. Inside the cab we control the front spray frame, corner spray nozzles and single-point high-pressure wash nozzles, to adjust the direction of the water spray, which can be maneuvered in all directions.
