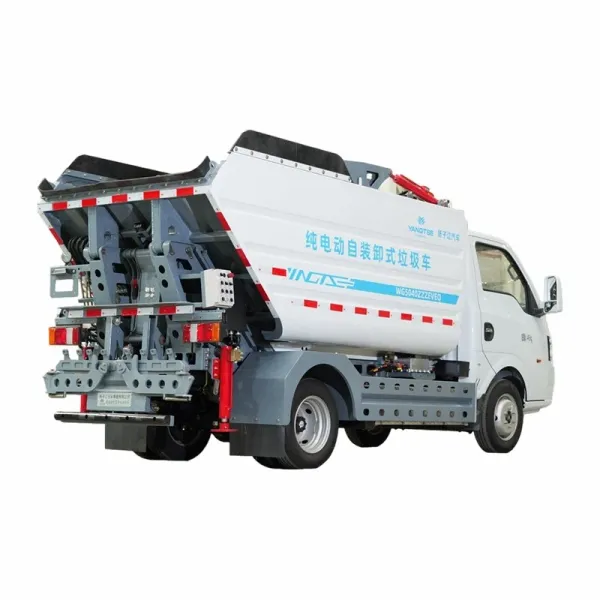

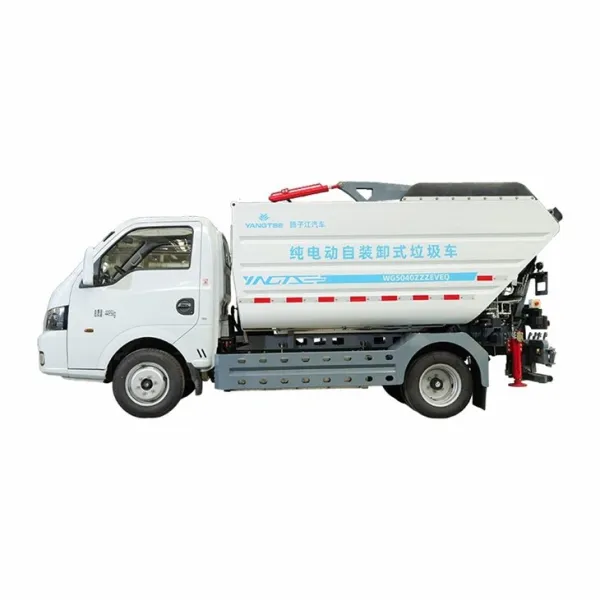

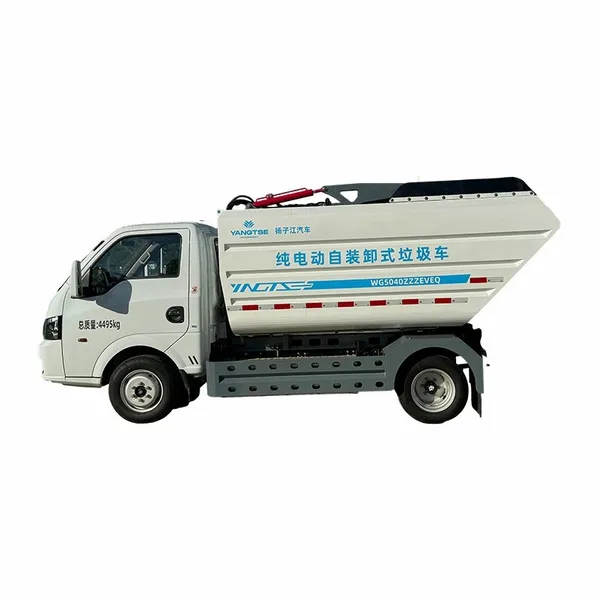

Electric Auto-loading Garbage Truck
Details
Electric auto-loading garbage truck: 4.5T
Cargo volume (m³): 4.5
Rated load capacity (kg): 1150
GVW (kg): 4495
Battery capacity (kWh): CATL 55.7
Operation capacity (h): 6-7
Cargo volume (m³): 4.5
Rated load capacity (kg): 1150
GVW (kg): 4495
Battery capacity (kWh): CATL 55.7
Operation capacity (h): 6-7
Category
Special VehicleShare to

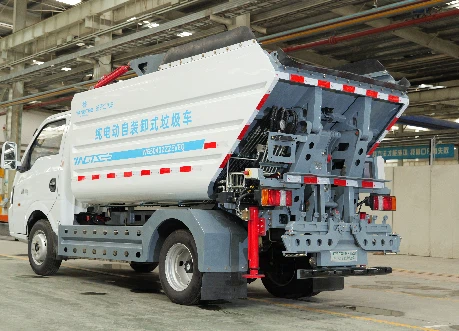

Electric auto-loading garbage truck is a special vehicle for collecting, transporting and unloading garbage in barrels in urban districts, squares and streets. The whole vehicle is fully sealed, which is the widely used way of garbage collection and transportation in the world.
Parameter
Size (mm) | Long × Width × High | 5250×1800×2350 |
|
| |
Front overhang/Rear Overhang | 1180/1280 |
|
| ||
Wheelbase | 2800 |
|
| ||
Front track/Rear track | 1390/1240 |
|
| ||
Minimum ground clearance | 185 |
|
| ||
Mass (kg) | Total mass/Curb Weight/Load capacity | 4495/2850/1195 |
|
| |
Passability | Approach Angle/Departure Angle (°) | 21/14 |
|
| |
Dynamics | Maximum speed (km/h) | 90 |
|
| |
Maximum climbing grade (%) | 16.6 |
|
| ||
Economical | Energy consumption (wh/km) | 222 |
|
| |
Driving range (km) (Constant speed) | 220 |
|
| ||
Chassis | Manufacturer | Dongfeng Huashen |
|
| |
Cab | Number of passengers allowed | 2 |
|
| |
Tire | Specification | 175R15LT 8PR |
|
| |
Quantity | 6 |
|
| ||
Drive motor | Manufacturer | Precision Motor |
|
| |
Rated/Peak Power (kW) | 42/100 |
|
| ||
Variable speed Device | Type | Fixed speed ratio |
|
| |
Number of gears/Gear Ratio | 1/2.2 |
|
| ||
Power battery | Total power (kWh) | 55.7 | CATL |
| |
Charging method/type | DC charging/Lithium Iron Phosphate |
|
| ||
Special device | Lifting mechanism | Material | Q345B |
|
|
Maximum lifting weight | 480kg |
|
| ||
Cabinet | Material | SUS304 |
|
| |
Efficient Volume (m³) | 4.2 |
|
| ||
Dedicated Features | Maximum hydraulic system pressure | 16Mpa |
|
| |
Loading operation cycle time | ≤21S |
|
| ||
Discharging one cycle time | ≤45S |
|
| ||
Other | Equipment included | Tool kit, warning triangle, jack, fire extinguisher, reflective vest, 2 parking wedges, cab operation panel, tail operation box, emergency stop switch, tail light, voice reminder device |
|
| |
Feature

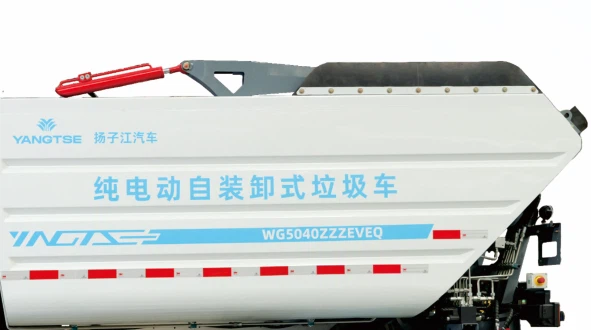

The special devices on the vehicle are equipped with independent power units, which are realized manually or electronically by the hydraulic mechanism. The box body of the vehicle is made of stainless steel SUS304 material with fully sealed welded structure, which has the advantages of high strength, light weight and no secondary pollution.
Product Characteristic

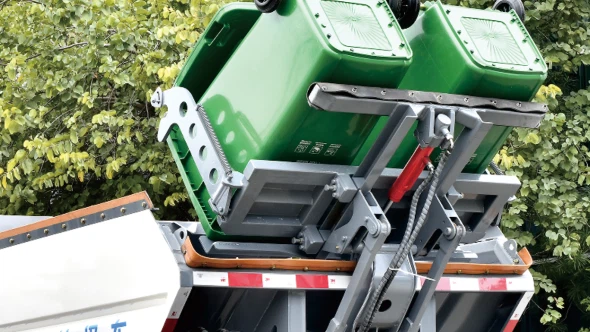

1. Adopted with parallel four-link mechanism loading, built-in logic, it can be operated by one button, can hang 2 barrels of 240L standard garbage cans at a time.
2. Lightweight cargo design, large volume, top with skateboard scraper mechanism, large compression ratio, strong loading capacity.
3. It can be used in conjunction with large tonnage compacted garbage trucks and mobile compacted garbage transfer stations.
